What are the electronic cable specifications?

‌ The models and specifications of electronic cables can be distinguished by wire gauges (AWG). Common wire gauges include 16AWG, 18AWG, 20AWG, 22AWG, 24AWG, 26AWG, 28AWG and 30AWG. ‌

Specific models and specifications

‌UL1007 electronic cable ‌ :

‌ cable gauge ‌ : 30AWG, 28AWG, 26AWG, 24AWG, 22AWG

‌ Wire count/wire diameter ‌ : For example, 30AWG has 7/0.1 wire count, outer diameter of 0.3mm, insulation thickness of 0.41mm, and finished outer diameter of 1.12mm‌

‌ Rated voltage ‌ : 300V‌

‌UL1015 electronic cable ‌ :

‌ cable gauge ‌ : 16AWG, 18AWG, 20AWG, 22AWG, 24AWG, 26AWG, 28AWG, 30AWG

‌ Outer diameter range ‌ : For example, 30AWG has an outer diameter range of 0.010" (0.254 mm) to 0.012" (0.305 mm) with A rated current capacity of 0.48A and a rated voltage of 600V‌

Material and use

Electronic wires usually use polyvinyl chloride (PVC) as an insulating material, which has good insulation and fire resistance. Electronic cable has a wide range of applications, mainly used for internal connection of electronic and electrical equipment, such as mobile phones, computers, televisions and other electronic products.

The types of connection wire are low smoke halogen free wire, silicone wire, PVC electronic wire, high temperature Teflon wire, enameled wire, silicone wire and so on.

Type of terminal:

Terminal type more than 200+ link is inconvenient to display, contact us directly to help confirm the selection.

Plastic shell needle holder model is complete, you need any hole position model can contact us.

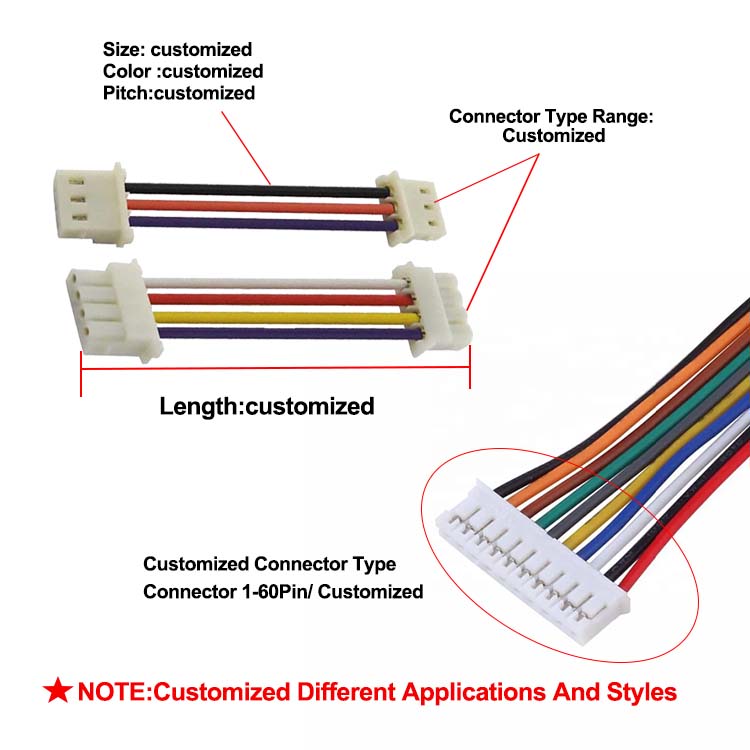

Contact us to custom make to your specifications:

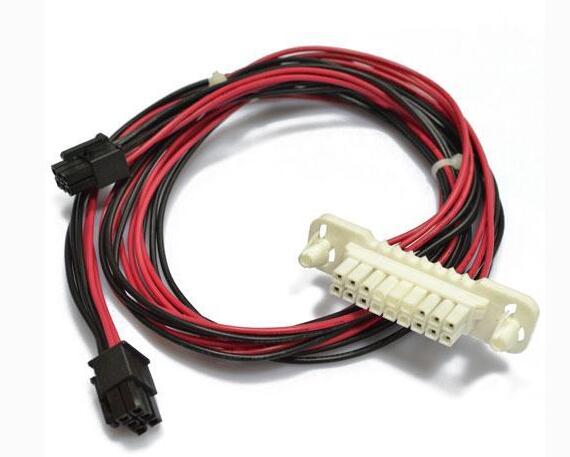

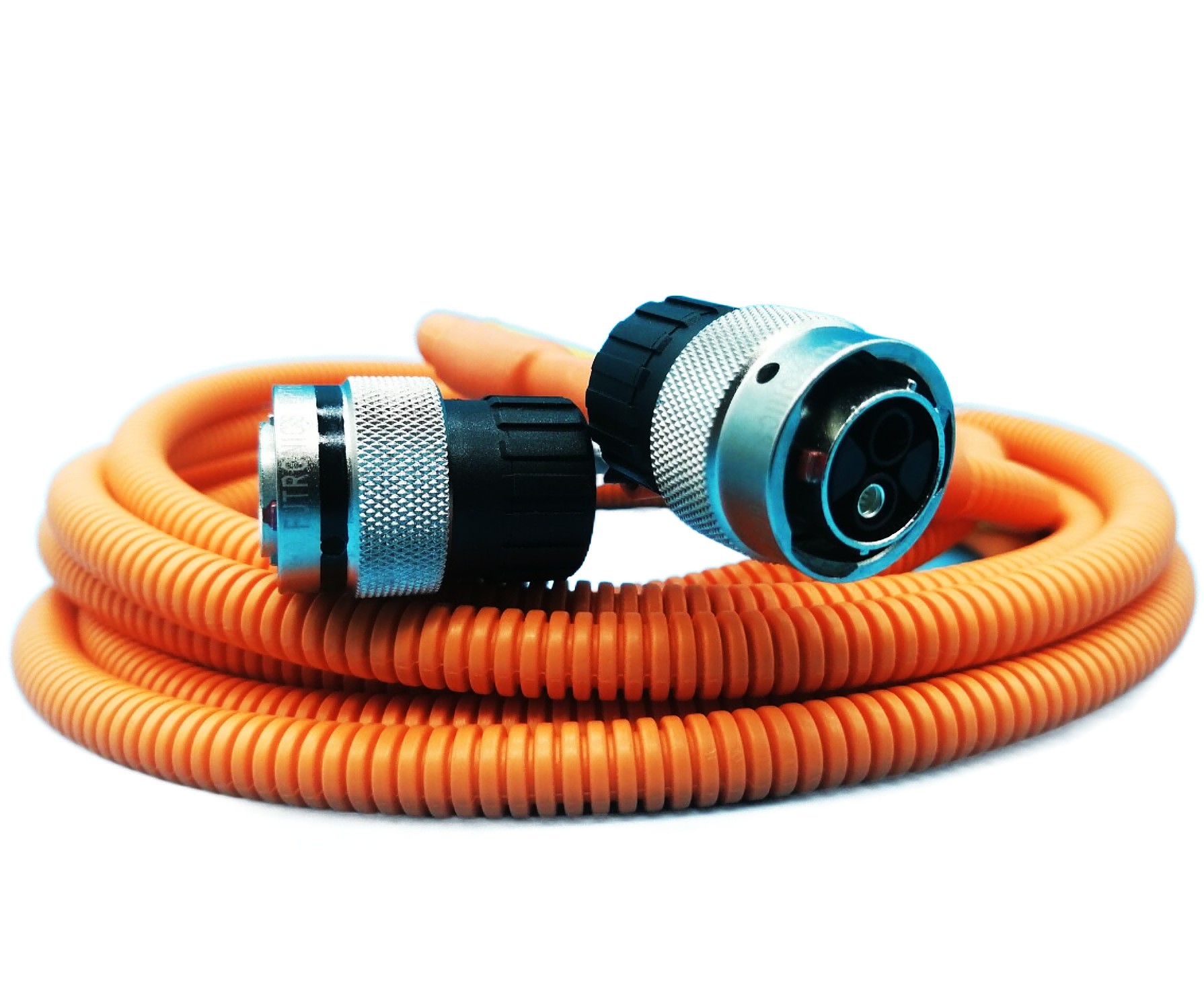

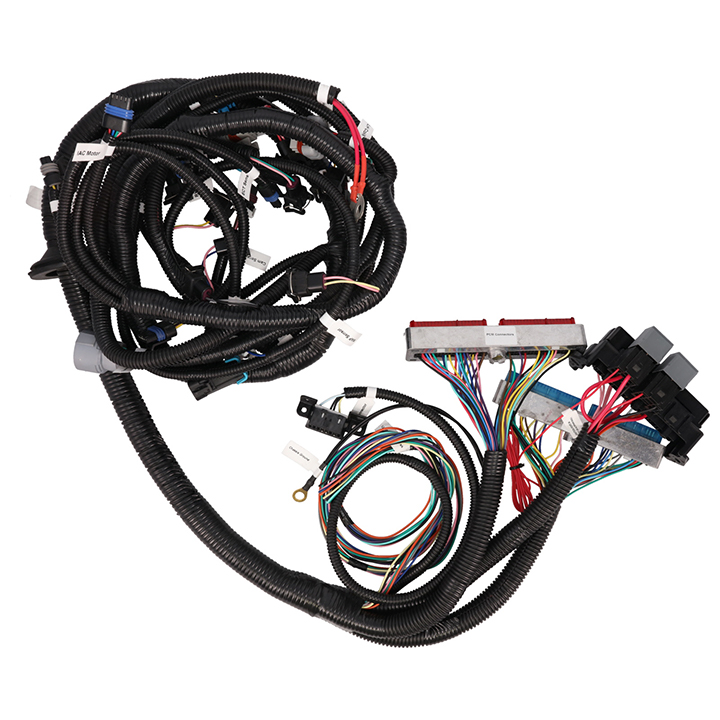

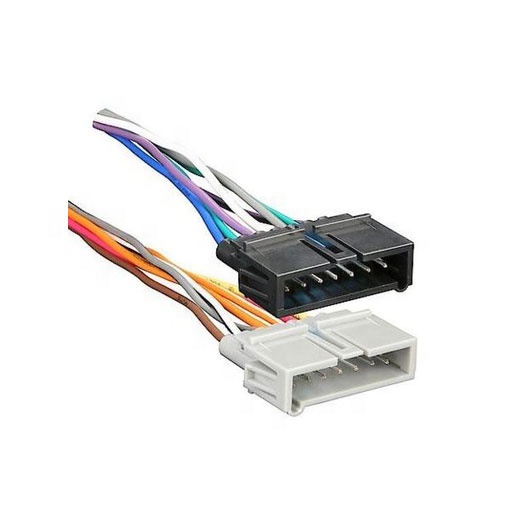

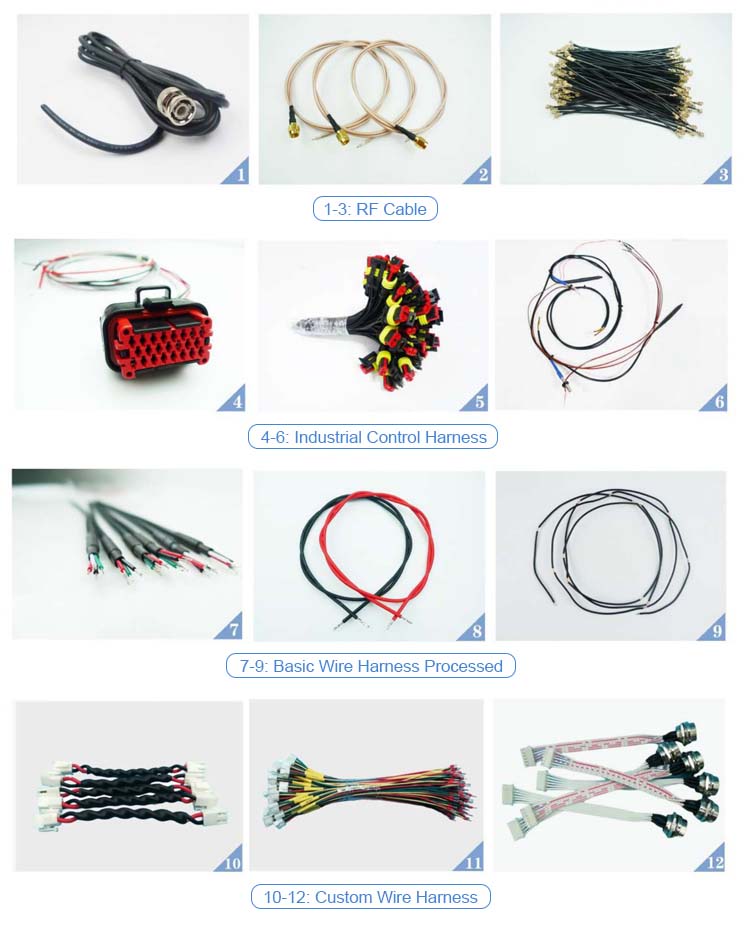

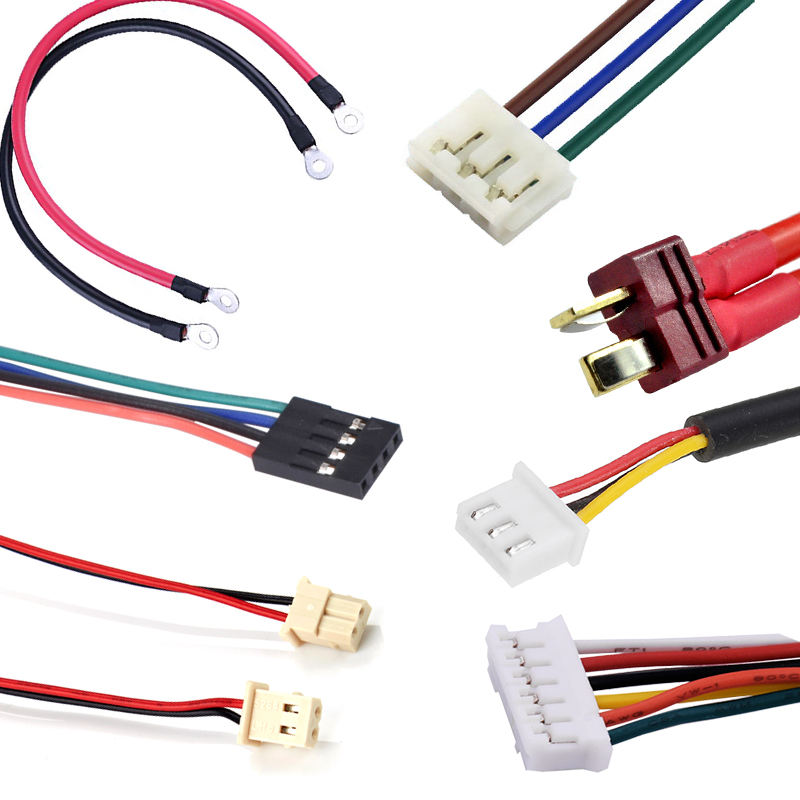

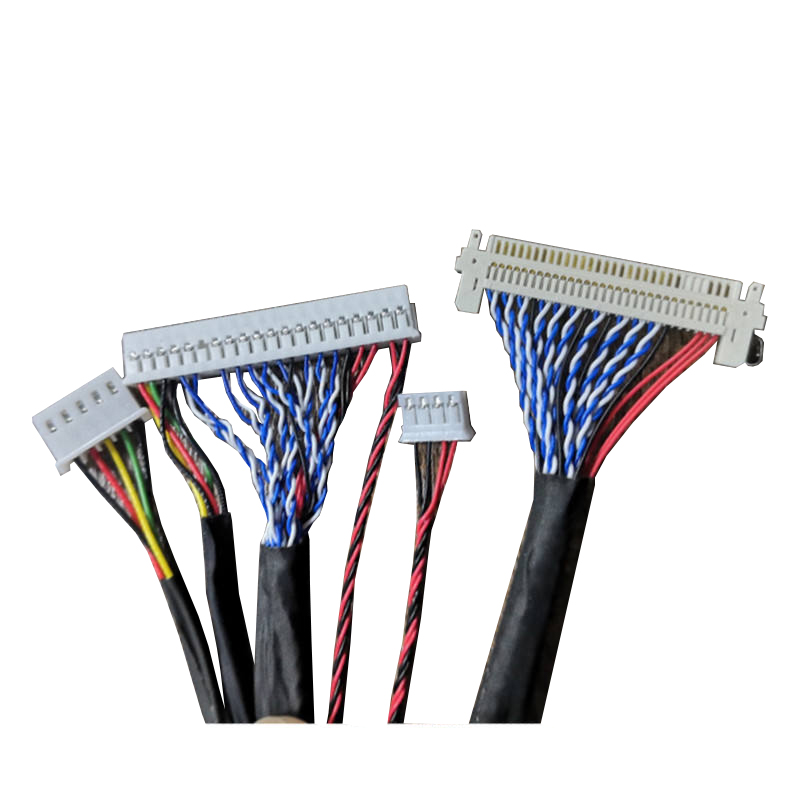

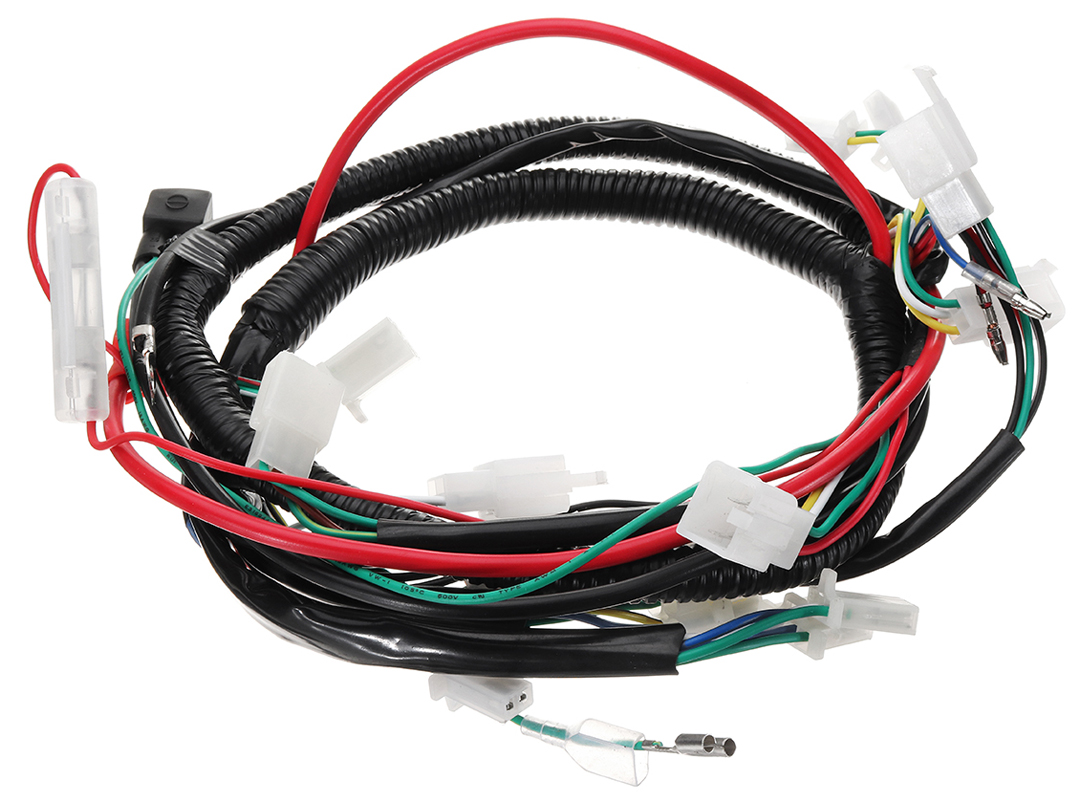

1.  We can make custom wiring harness according to customer's design.

2.  Different types wires, PVC, PU, PTFE, SILICONE, XLPE, RUBBER insulated can be used in wiring harnesses.

3.  Different types connectors, JST, Tyco, AMP, Molex, Hirose, Jae, Weipu, Delphi, DEUTSCH, Yeonho, Ket, 3M, FCI, Phoenix, YAZAKI, SUMITOMO etc connectors can be used in wiring harnesses.

4.  Original connectors or equivalent ones available.

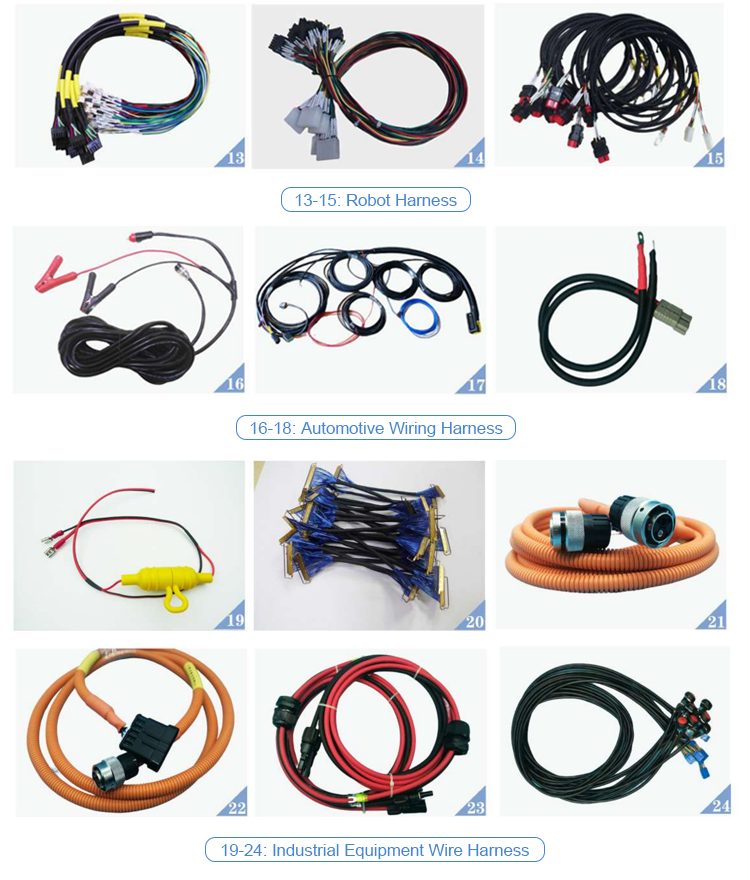

5.  Our products are used in electrical equipment, computer, printer, digital camera,

display screen, stereo equipment, automotive, Home appliances etc.

6.  MOQ: Depends on specifications.

7.  Delivery time: Samples usually 10 days after deposit received.

Small order usually 15-30 days after deposit received.

Mass order depends on quantity and specifications.

8.  Payment terms: Paypal, T/T etc.

9.  Price terms: EXW DONGGUAN / FOB SHENZHEN.

10.  Packing: Usually PE inner ,outer carton,or at buyer's option.

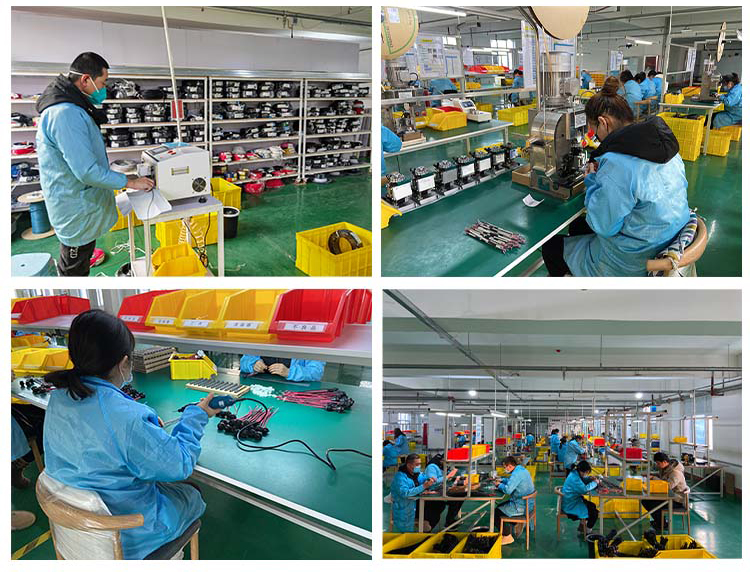

Professional custom wiring harnesses manufacturer since 2004.  We are willing to be your best partner to manufacture best quality

wiring harnesses for you.  Contact us right now!

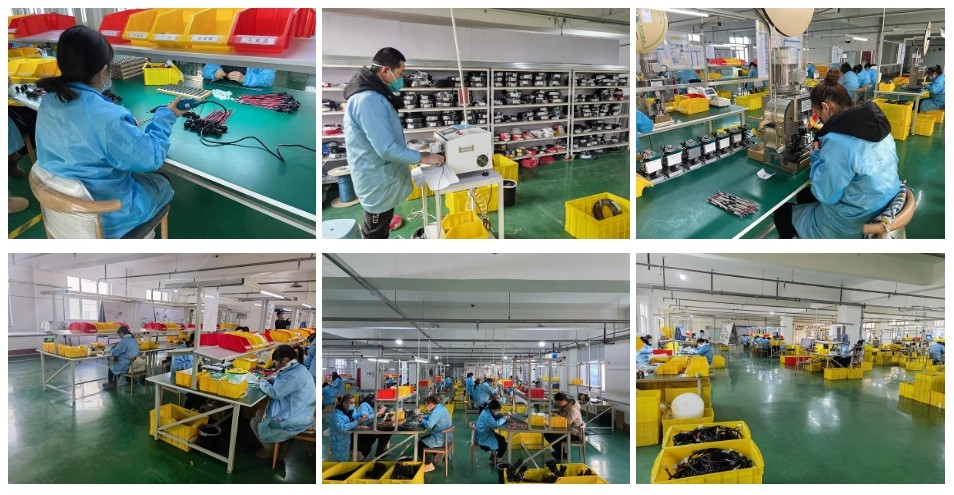

Q1:Are you factory or trading company? A:We are group company with trade company and 2 factories.

Q2:Is free sample available? A:Yes, we are happy to send free samples of some items for quality evaluation. Please contact us to get the sample application process. Q3:What is your lead time? A:Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities. Q4:How does your factory do regarding quality control? A:Quality is priority. We always attach great importance to quality control from the very beginning to the end: ) All raw material we used are non-toxic, environmental-friendly; 2) Skillful workers pay great attention to each details in handling the producing and packing processes3) We have a professional QA/ QC team to ensure the quality. Q5:Do you accept OEM or ODM order? A:Yes, we accept both OEM and ODM for customers. Q6:What are your terms of delivery? A:We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you. Q7:What is the payment way? A:TT, LC first, DP or OA would be considered for the long-term customer Should you have other questions, please let us know. Well add answers here for your further references. Thank you.
