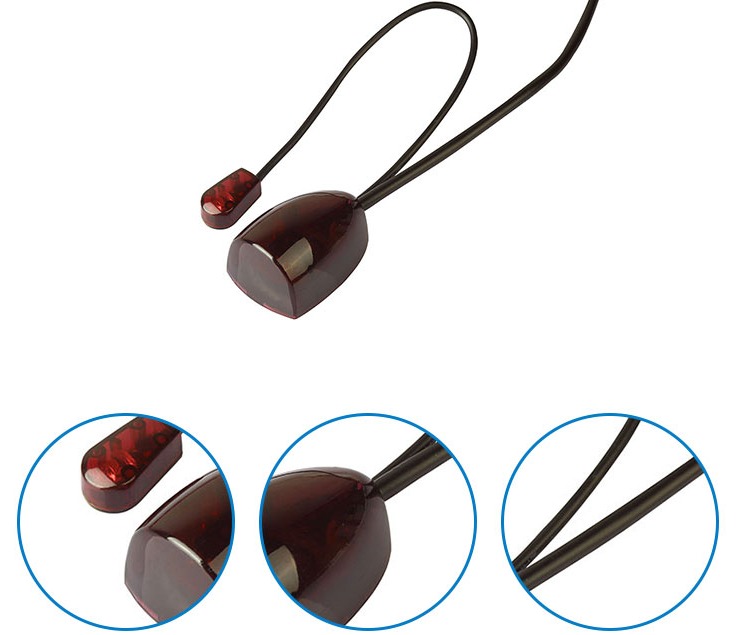

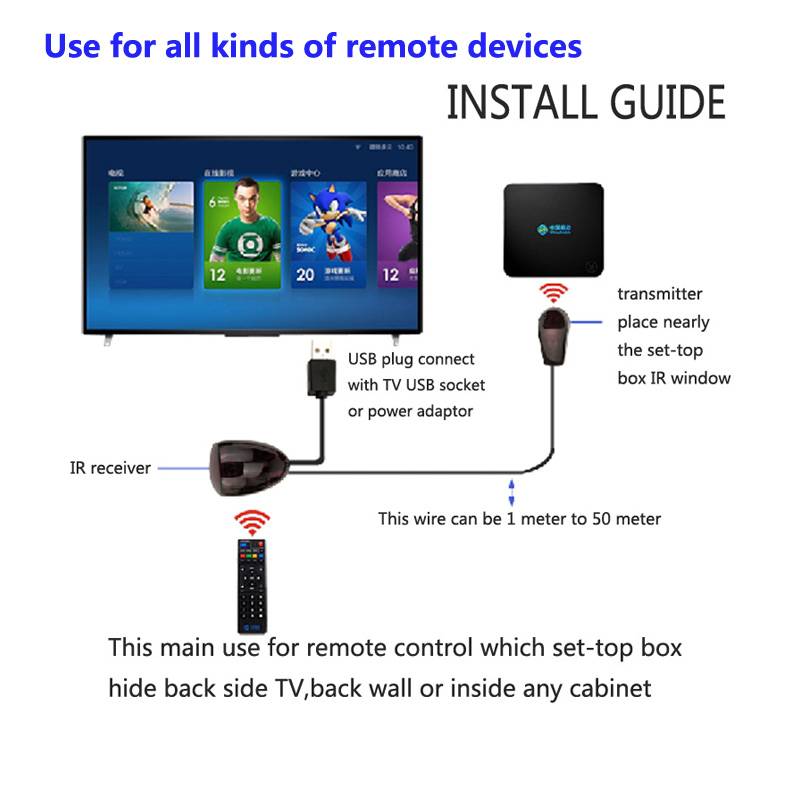

Stick the Receiver in a convenient location that you want with the included double sided tape;
Stick the IR emitters on devices that you want to control;
Please make sure to place IR emitter(the small one) NEAR THE IR WINDOW of your device.

Price Interview

Interview

产品详情

Model：LFN001 Product name：IR receiver extender extension cable for mobile tv Product description：Customized products according to requirements Operating Voltage：2.7-5.5V Emission distance：13-15M Plug：3.5mm/2.5mm Line length：50-500CM Products Parameters Parameters Mark Test condition Min Type Max Unit Working votage VCC 2.7 5.5 V Working Current Icc 0.6 0.8 - mA Quiescent current Ice With out signal 0.1 0.5 mA Receive distance L ※ 20 23 M Receive angle θ1/2 +/-60 Deg ...

Min.Order Quantity:100 Piece/Pieces
Supply Ability:10000 Piece/Pieces per week
port:shenzhen
Type:IRED
Application:Smart Home, satellite receiver, DVB receiver
Packing:1kPer Box
Connector Type:Stereo
Gender:MALE-MALE
Place of Origin:Guangdong, China
Model Number:RFV001
Outer Diameter:3.0
Connector Color:Tea Red and Black
Shielding:irsl
Jacket:PVC
Products Status:Stock
Conductor:Bare Copper, CCA
Size:28.7*16.5*9.0mm
Operating Voltage:2.7-5.5V
Emission distance:13-15M
plug:3.5mm/2.5mm
Line length:50-500CM
Application:Car audio, digital set-top box, mobile TV, computer, multimedia, etc.

Model：RFV001

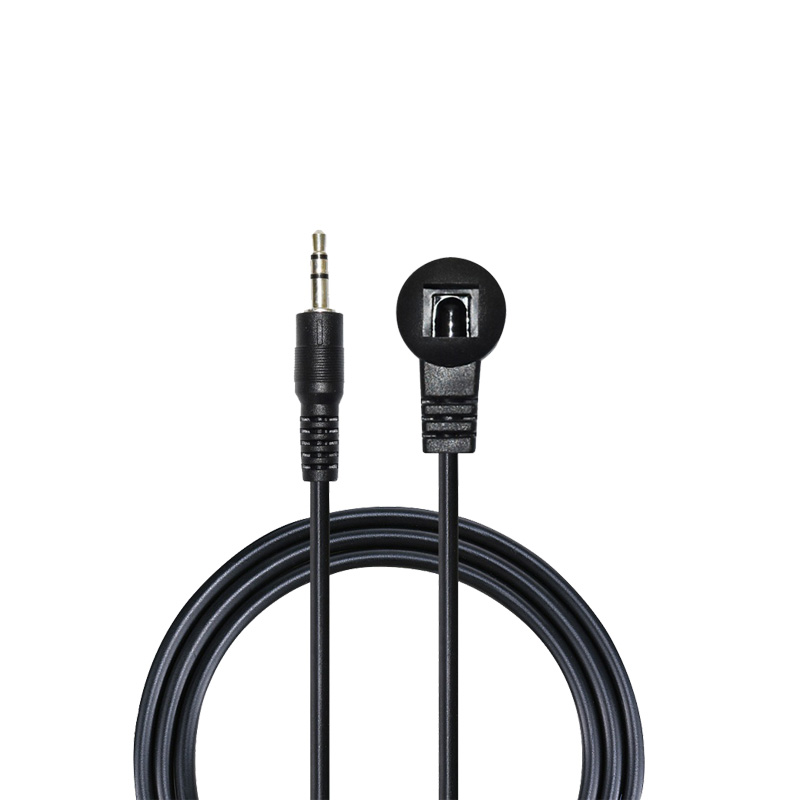

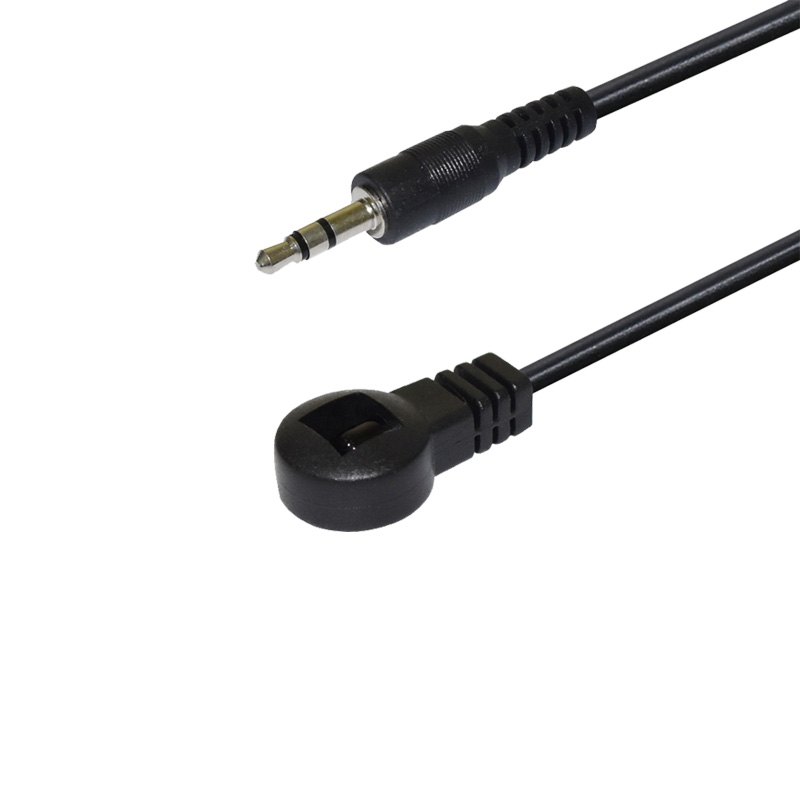

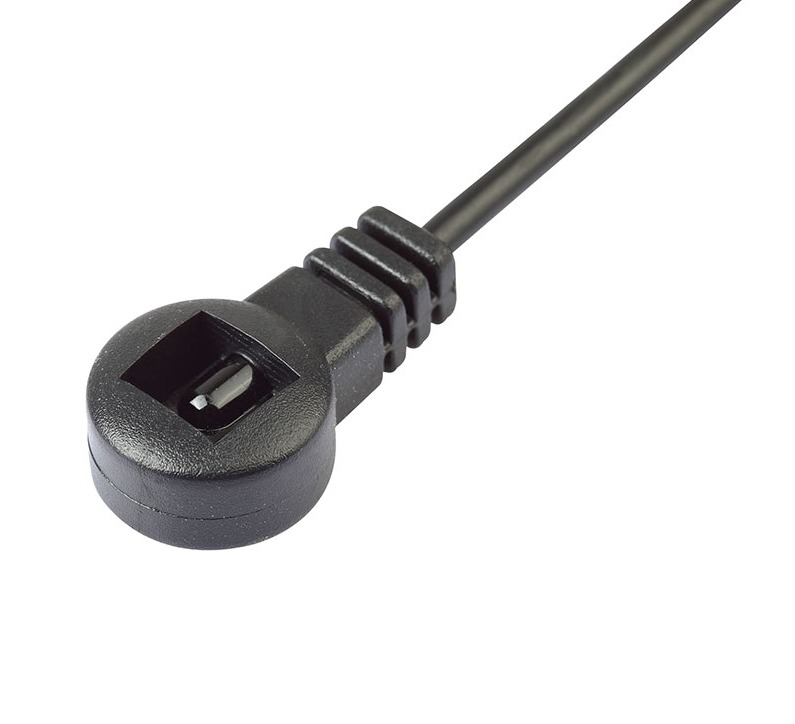

Product name：IR receiver extender extension cable for mobile tv

Product description：Customized products according to requirements

Operating Voltage：2.7-5.5V

Emission distance：13-15M

Plug：3.5mm/2.5mm

Line length：50-500CM

Products Parameters

Parameters	Mark	Test condition	Min	Type	Max	Unit
Working votage	VCC		2.7		5.5	V
Working Current	Icc		0.6	0.8	-	mA
Quiescent current	Ice	With out signal	0.1		0.5	mA
Receive distance	L	※	20	23		M
Receive angle	θ1/2		+/-60			Deg
Carrier frequency	f0		20-60			KHZ
BMP width	fBW	-3Db Bandwidth	-	8	-	kHz
Low output	VOL	Vin=0V Vcc=5V			0.4	V
High output	VOH	Vcc=5V	Vcc-0.3		Vcc	V
Output pulse Width	TPWL	Vin=50mVp-p	500	600	700	μS
Output pulse Width	TPWH	Vin=50mVp-p	540	640	740	μS
