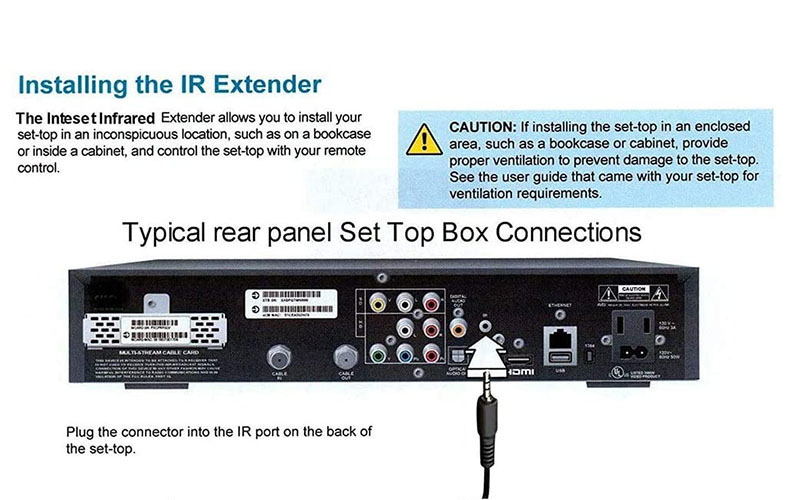

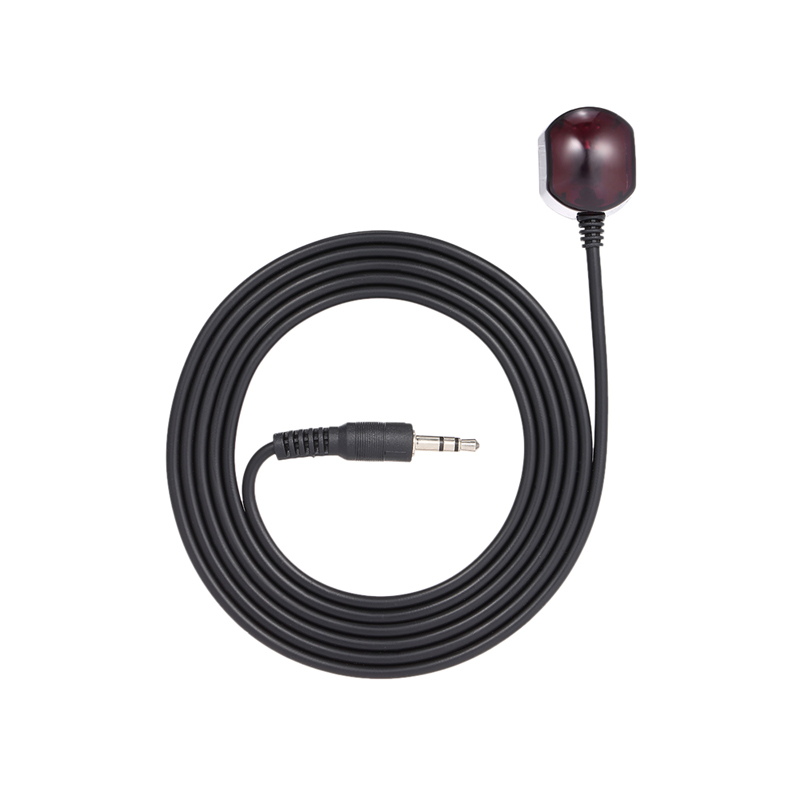

Commonly used when your receiver is in a cupboard, in a different room, or behind your TV.Small and discreet in size, easy to hide out of sight.The IR receiving cable is only compatible with IR Receivers, such as set-top box, car-mounted DVD, car , player, etc.

Price Interview

Interview

产品详情

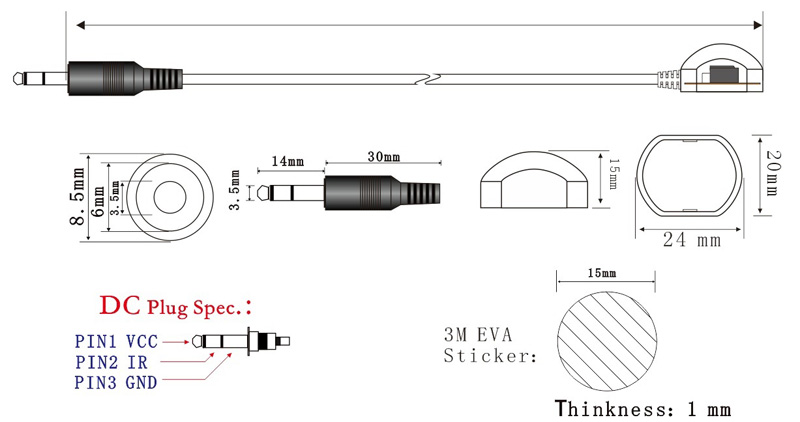

Model No: LF009 SIZE: 24.0(L)X21.0 (W)X14.0(H)mm WORKING VOLTAGE: 2.7-5.5 V(DC) RECEIVE DISTANCE: 15-18 Meter WIRE LENGTH: 50-500 CM PLUG: DC/USB/MINI USB Products Features 1．Specification： * PE plastic cabinet strong protect; * PVC long wire customize; * Wide-angle and long distance reception; * With strong anti-jamming capability; * Anti-jamming from the light; * Low voltage working; 2．Application: *Set-top box,IP TV *Satellite receiver *Other audio system Products Parameters Parame...

Min.Order Quantity:100 Piece/Pieces
Supply Ability:10000 Piece/Pieces per week
port:shenzhen
Place of Origin:Guangdong, China
Brand Name:Rocfly
Model Number:RF009
Outer Diameter:3.0
Connector Color:black
Shielding:none
Jacket:PVC, Foamed PE
Products Status:Stock
Conductor:CCS, CCA

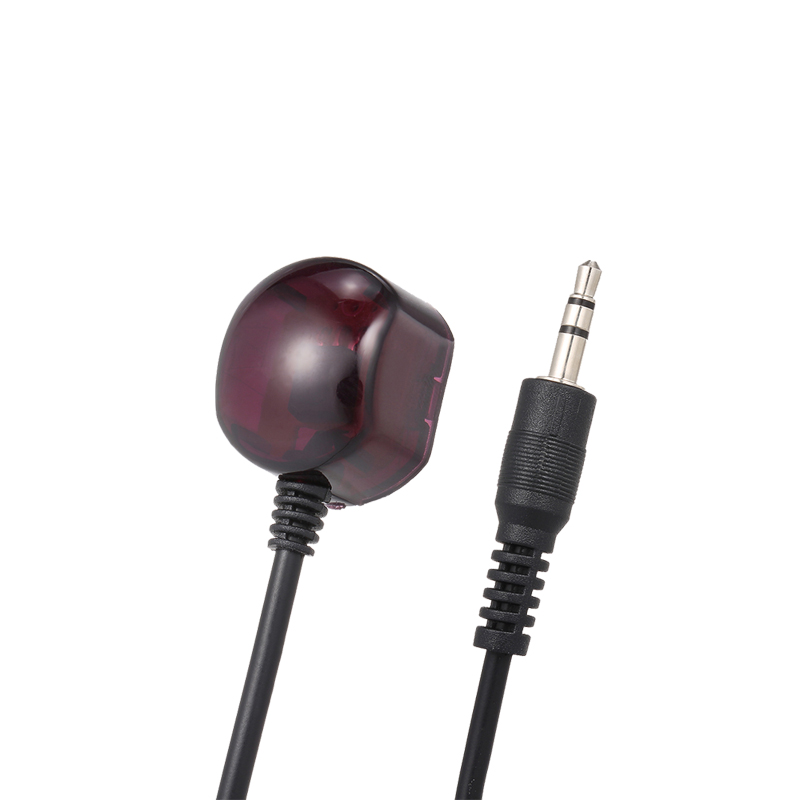

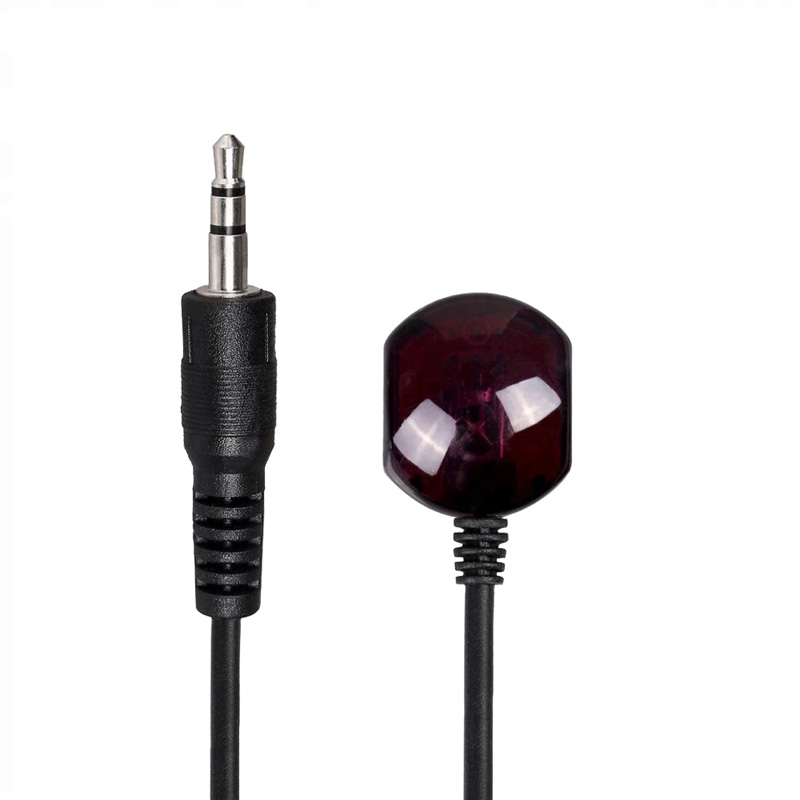

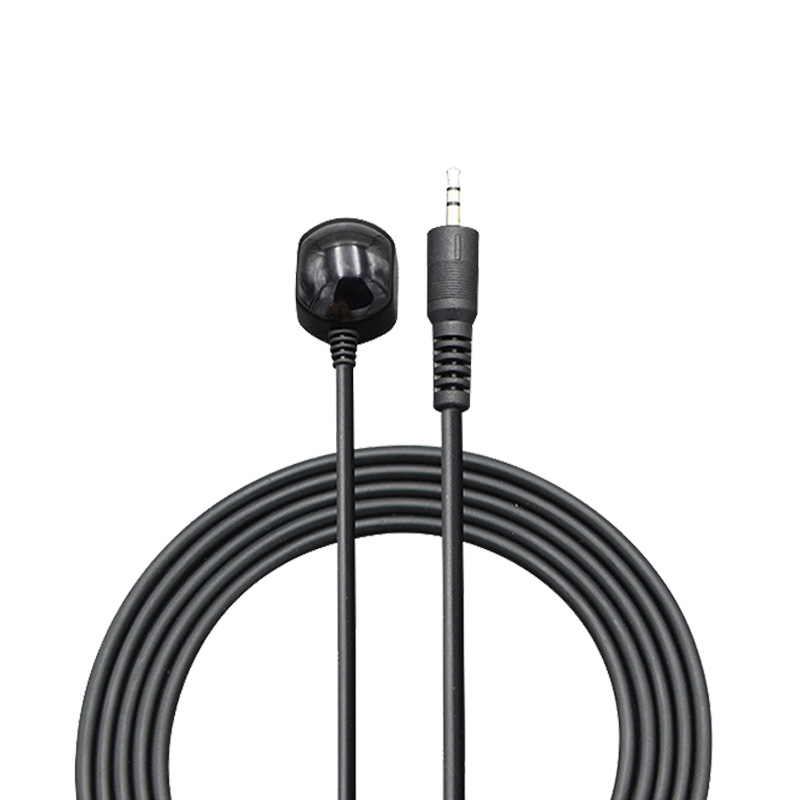

Product name:ir receiver cable
Application:set-top box,tv box
Sensing type:infrared
Output signal:digital signal
Certificate:CE RoHS
Plug DC:3.5 mm
Cabinet:PE plastic
Certification:RoHS

Products Features

1．Specification：
* PE plastic cabinet strong protect;
* PVC long wire customize;
* Wide-angle and long distance reception;
* With strong anti-jamming capability;
* Anti-jamming from the light;
* Low voltage working;
2．Application:
*Set-top box,IP TV
*Satellite receiver
*Other audio system

Products Parameters

Parameters	Mark	Test condition	Min	Type	Max	Unit
Working votage	VCC		2.7		5.5	V
Working Current	Icc		0.6	0.8	-	mA
Quiescent current	Ice	With out signal	0.1		0.5	mA
Receive distance	L	※	20	23		M
Receive angle	θ1/2		+/-60			Deg
Carrier frequency	f0		38			KHZ
BMP width	fBW	-3Db Bandwidth	-	8	-	kHz
Low output	VOL	Vin=0V Vcc=5V			0.4	V
High output	VOH	Vcc=5V	Vcc-0.3		Vcc	V
Output pulse Width	TPWL	Vin=50mVp-p	500	600	700	μS
Output pulse Width	TPWH	Vin=50mVp-p	540	640	740	μS

No comment
